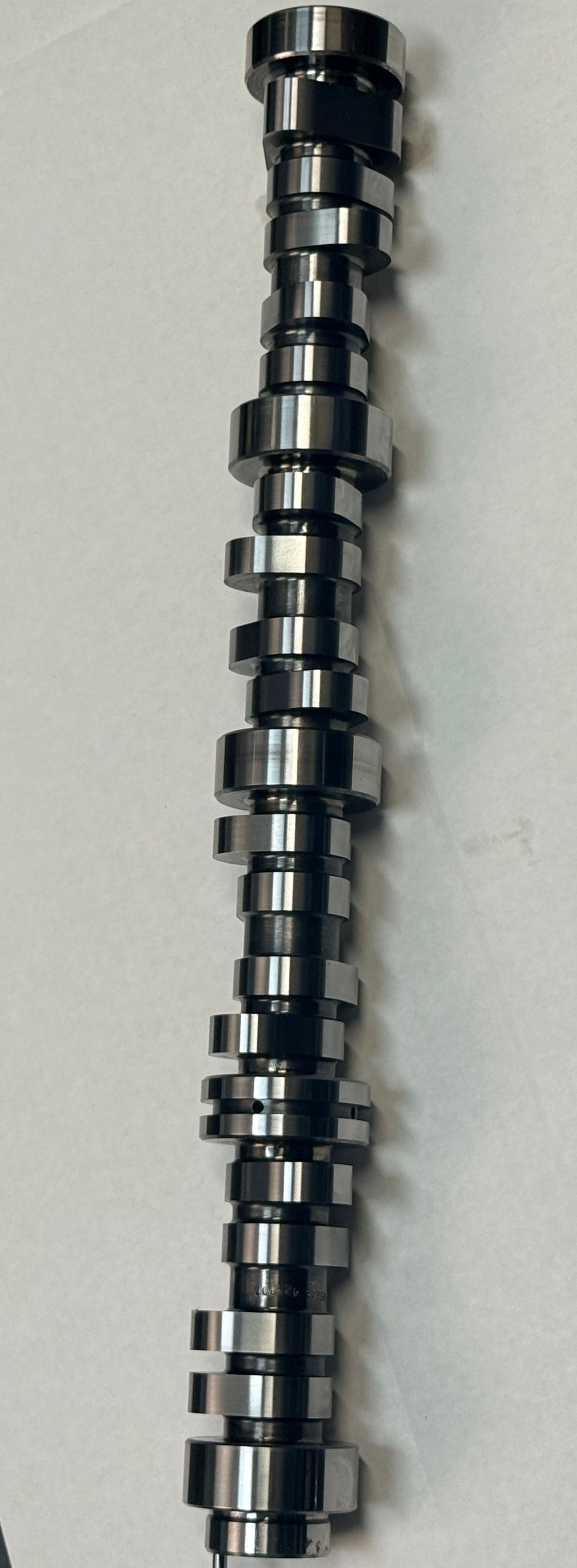

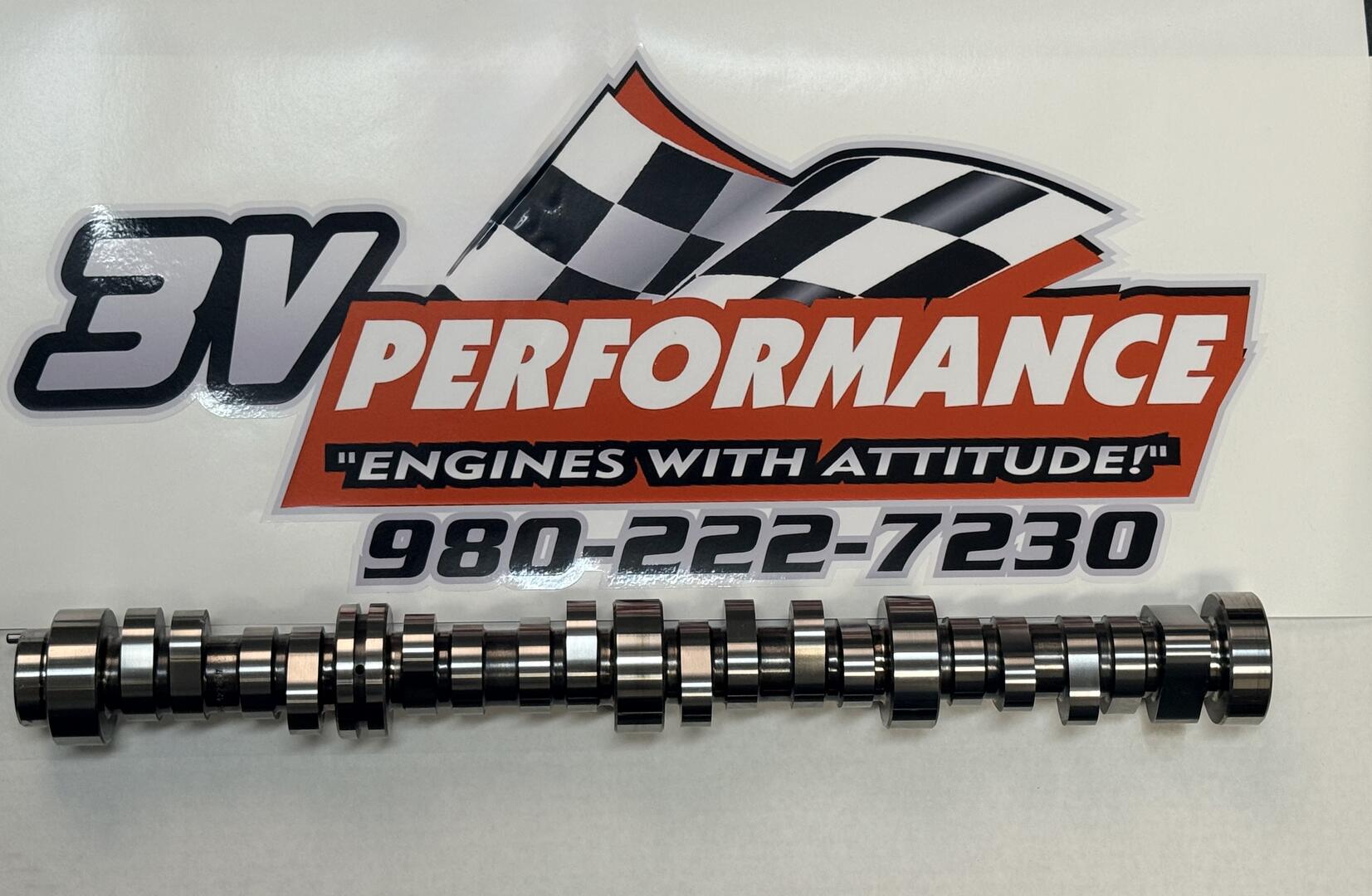

GM Gen V (Gen 5) LT Stage 2.75 232/248 Positive-Displacement Blower Camshaft – .625"/.637" Lift – 116.5° LSA

Designed specifically for positive-displacement (PD) supercharged LT combinations, this Stage 2.75 232/248 camshaft is built to take advantage of the unique characteristics of Roots-style and TVS-style superchargers.

Featuring 232° intake / 248° exhaust duration at .050", .625" intake lift, .637" exhaust lift, and a 116.5° lobe separation angle, this profile is designed to provide excellent cylinder filling, strong midrange torque, and dependable high-RPM airflow while working with the increased cylinder pressure of a positive-displacement blower.

The 116.5° LSA produces a more aggressive idle and powerband than wider blower-cam profiles. The additional exhaust duration helps evacuate the increased exhaust volume produced under boost, making this cam an excellent choice for aggressive street/strip PD-supercharged LT combinations.

Ideal Applications

• Positive-Displacement Superchargers
• Roots-Style Blowers
• TVS Superchargers
• Whipple and Magnuson Systems
• High-Performance Street/Strip Builds
• Other Boosted Gen V LT Applications

Gen V LT Applications

Designed for compatible pushrod GM Gen V LT combinations, including:

• LT1
• LT2
• LT4
• LT5

Camshaft Specifications

• Platform: GM Gen V LT
• Stage: 2.75
• Intake Duration @ .050": 232°
• Exhaust Duration @ .050": 248°
• Intake Centerline: 115°
• Exhaust Centerline: 118°
• Intake Lobe Lift: .347"
• Exhaust Lobe Lift: .354"
• Intake Valve Lift with 1.8 Rockers: .625"
• Exhaust Valve Lift with 1.8 Rockers: .637"
• Lobe Separation Angle: 116.5°
• Primary Application: Positive-Displacement Supercharged
• Idle Quality: Aggressive and Choppy

Recommended RPM & Converter

• Recommended Operating Range: 2,500–7,000 RPM
• Strongest Powerband: Approximately 3,200–6,800 RPM
• Recommended Converter Stall: 2,800–3,400 RPM
• Race Applications: A 3,400–3,800 RPM stall may be beneficial depending on the combination

The ideal converter and operating range will vary based on engine displacement, blower type, boost level, compression ratio, rocker ratio, gearing, vehicle weight, transmission, and overall combination.

Built for Boost

The 232/248 duration, .625"/.637" lift, and 116.5° LSA combination is designed for aggressive Gen V LT street/strip performance, with particular emphasis on positive-displacement blower applications.

Pair this camshaft with a properly matched valve spring and retainer package for a complete performance valvetrain capable of supporting increased RPM and boost.

Professional installation and complete valvetrain-clearance checks are required. Verify piston-to-valve clearance, spring installed height, coil bind, retainer-to-seal clearance, and overall valvetrain compatibility for your specific engine combination before operation.
