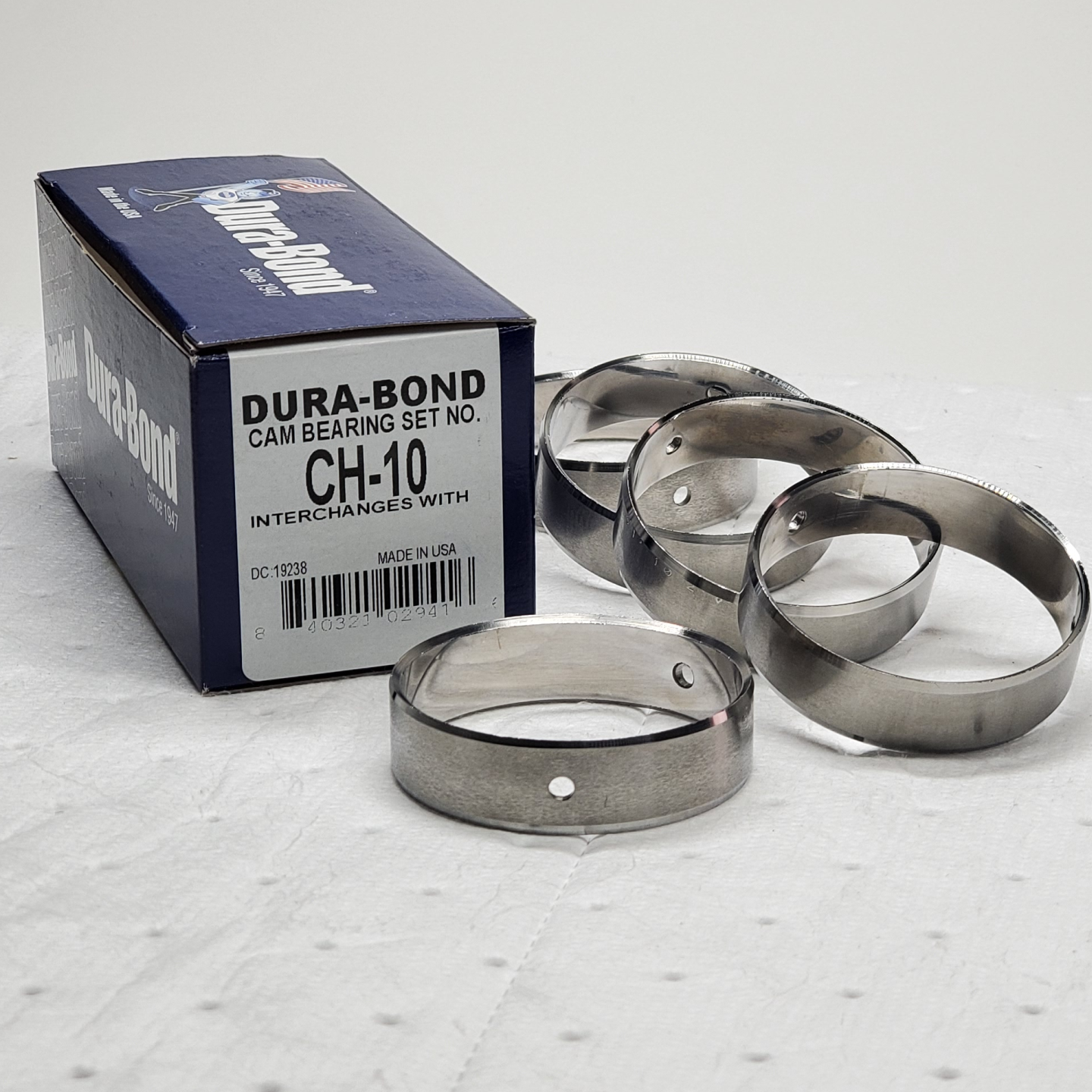

Dura-Bond CH-10 Standard Series cam bearings are listed for compatible early Chevrolet LS blocks requiring the first-design cam bearing configuration. This uncoated set features bi-metal construction with a seamless steel backing and lead-based babbitt bearing material.
Specifications
- Manufacturer: Dura-Bond
- Part number: CH-10
- Product line: Standard Cam Bearings
- Bearing type: Camshaft bearing set
- Design: First design
- Listed application years: 1997–2003, subject to block configuration
- Listed engine applications: LS1, LS6, LQ4, LQ9, LM7, L59, and LR4
- Listed displacements: 4.8L, 5.3L, 5.7L, and 6.0L
- Construction: Bi-metal, seamless steel backing with lead-based babbitt
- Coated: No
Before Ordering
Confirm that your specific block requires first-design cam bearings. The first-design designation refers to the cam bearing configuration, not the engine's generation. Model year, displacement, and engine code alone do not establish fitment, especially around design changes or with replacement blocks.
For blocks using a later cam bearing configuration, confirm the correct alternative before ordering. Verify cam bearing housing dimensions, camshaft journal dimensions, installed clearance, and oil-feed alignment during assembly. Contact 3V Performance for help matching the bearing set to your block.
