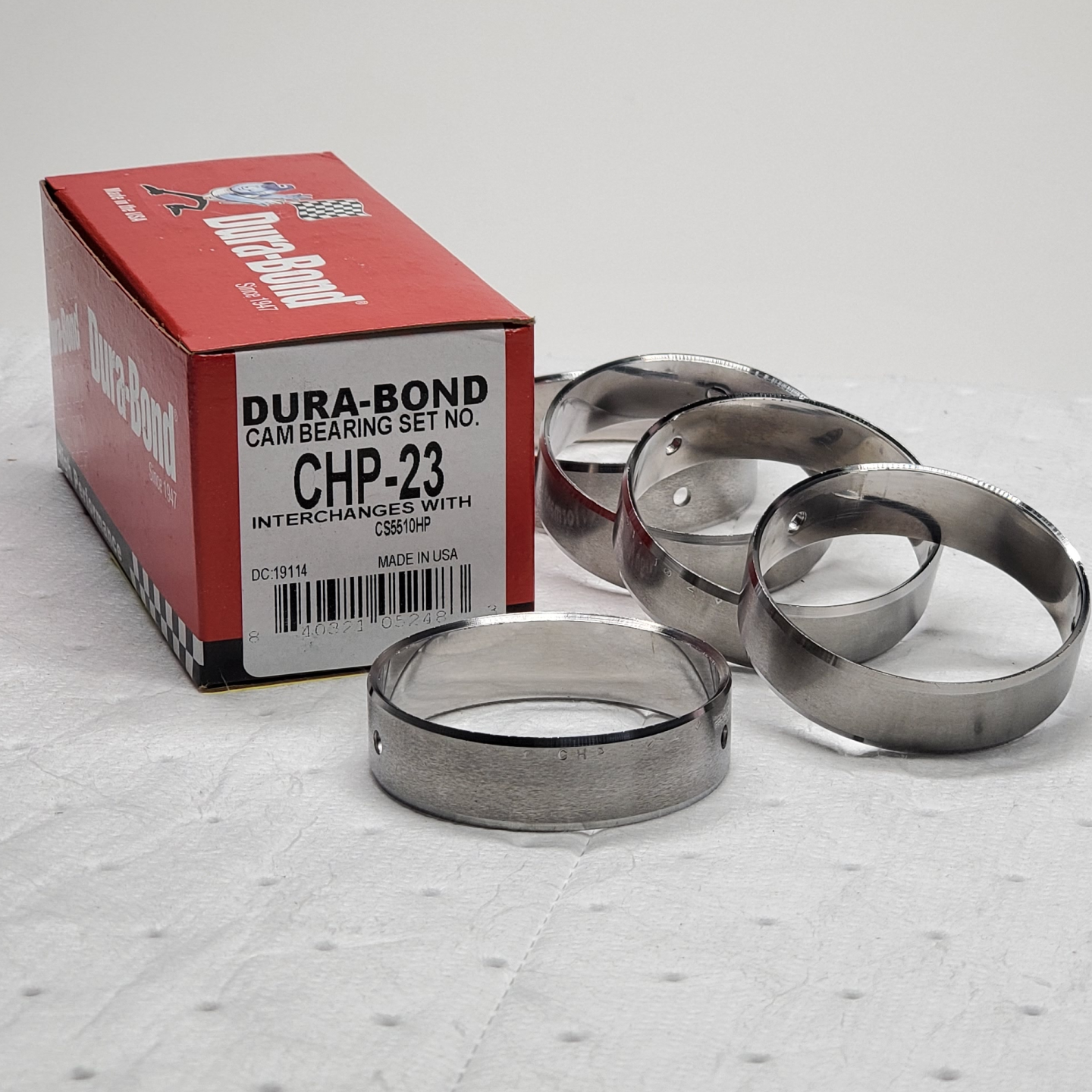

Dura-Bond CHP-23 High Performance cam bearings are listed for compatible Chevrolet Gen III/IV LS engine combinations. These uncoated bearings feature micro-babbitt lining, with position-specific housing bore and wall dimensions listed below.
Specifications
- Manufacturer: Dura-Bond
- Part number: CHP-23
- Bearing type: Camshaft bearings
- Series: High Performance
- Application family: Compatible Chevrolet Gen III/IV LS blocks
- Bearing lining: Micro-babbitt
- Coated: No
- Listed bearing length: 0.630 inch
Listed Position-Specific Dimensions
- Positions 1 and 5: Housing bore 2.3470 inches; maximum wall 0.0890 inch
- Positions 2 and 4: Housing bore 2.3270 inches; maximum wall 0.0790 inch
- Position 3: Housing bore 2.3088 inches; maximum wall 0.0700 inch
Before Ordering
Match CHP-23 to your specific block's cam bearing configuration. The housing bore values above describe the block bores, not camshaft journal diameters or assembled oil clearances. Engine family and displacement alone do not establish fitment.
Confirm the required bearing dimensions against your block and camshaft specifications. Verify installed clearance and oil-feed alignment during assembly. Contact 3V Performance for help confirming the correct bearings before ordering.
