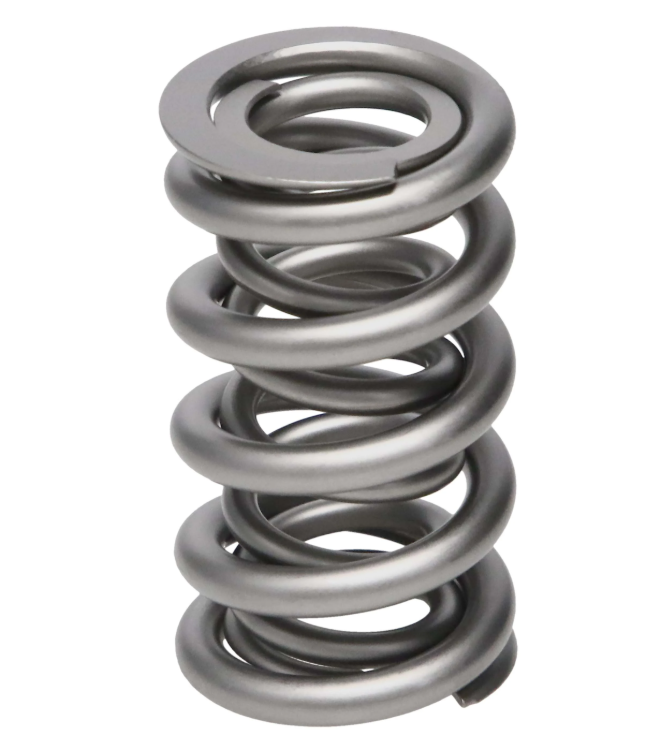

PAC-1330-16 0.726 in. ID – 1.500 in. OD – 2.050 in. installed Height – 0.850 in. Max Valve Lift

0.726 in. ID – 1.500 in. OD – 2.050 in. installed Height – 0.850 in. Max Valve Lift

PAC Racing’s 1300 Series Drag Race Dual Valve Spring is the manifestation of the latest technology in the drag racing valvetrain aftermarket. Traditional springs were made with higher loads and rates without concern of spring mass and frequency. PAC Racing has taken years of research and coupled that with exotic new heat treatment methods to produce the next generation of drag racing valve springs. The 1300 Series springs feature a 15-30% reduction in physical mass. This, coupled with a natural frequency increase of 20%, enables your engine to rev higher, faster, and last longer even with aggressive camshaft profiles. These springs are constructed of our signature PACaloy super clean wire and are heat-treated in-house for precise spring rates and enhanced strength. They undergo a multi-peen process to optimize service life as well. Unique to the 1300 Series, these springs then receive ID/OD chamfer finishing, a run through the polisher, and a Nano-Peen™ proprietary surface treatment to improve operating cycles.

Built using our signature PACaloy super clean wire to ensure strength and durability
In-house heat-treating for precise spring rates and increased strength
Multi-peen process to optimize service life
ID/OD chamfer finishing
Polishing to improve operating cycles
Nano-Peen™ Proprietary Surface Treatment

Outer Diameter – Outer Valve Spring
1.500 IN

Inner Diameter – Outer Valve Spring
1.050 IN

Inner Diameter – Inner Valve Spring
0.726 IN

Installed Height
2.050 IN

Installed Load
275 PS

Open Height
1.200 IN

Open Load
938 PS

Open Load / Height (Valve Open)
938 LB @ 1.200 IN

Valve Spring Rate
780 PS

Max Coil Bind
1.130 IN

Max Valve Lift
0.850 IN

Recommended Valve Spring Retainer – 400 Series
R408

Recommended Valve Spring Retainer – 500 Series
R508, R509, R544

Recommended Valve Spring Retainer – 600 Series
R608, R609, R644

Recommended Valve Spring Seat
S110, S126, S134

Recommended Valve Spring Cup
C202

Valve Spring Series
1300 Series

Valve Spring Type
Dual

Valve Spring Application
Drag Race

Primary Market
Drag Race|Street Performance
